Hydraulic Guillotine Shear AMADA PROMECAM GX 630 3050 x 6 mm / #316

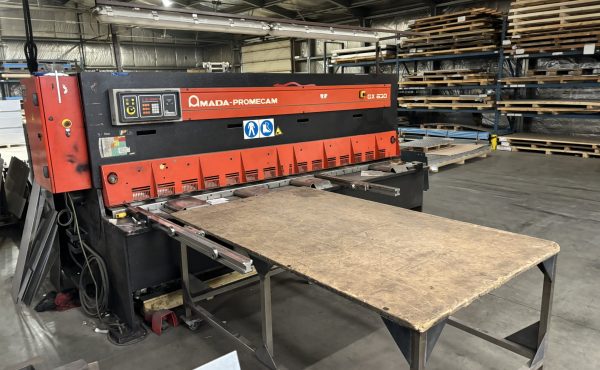

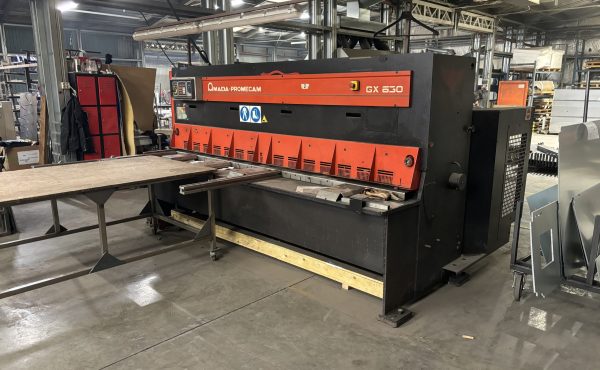

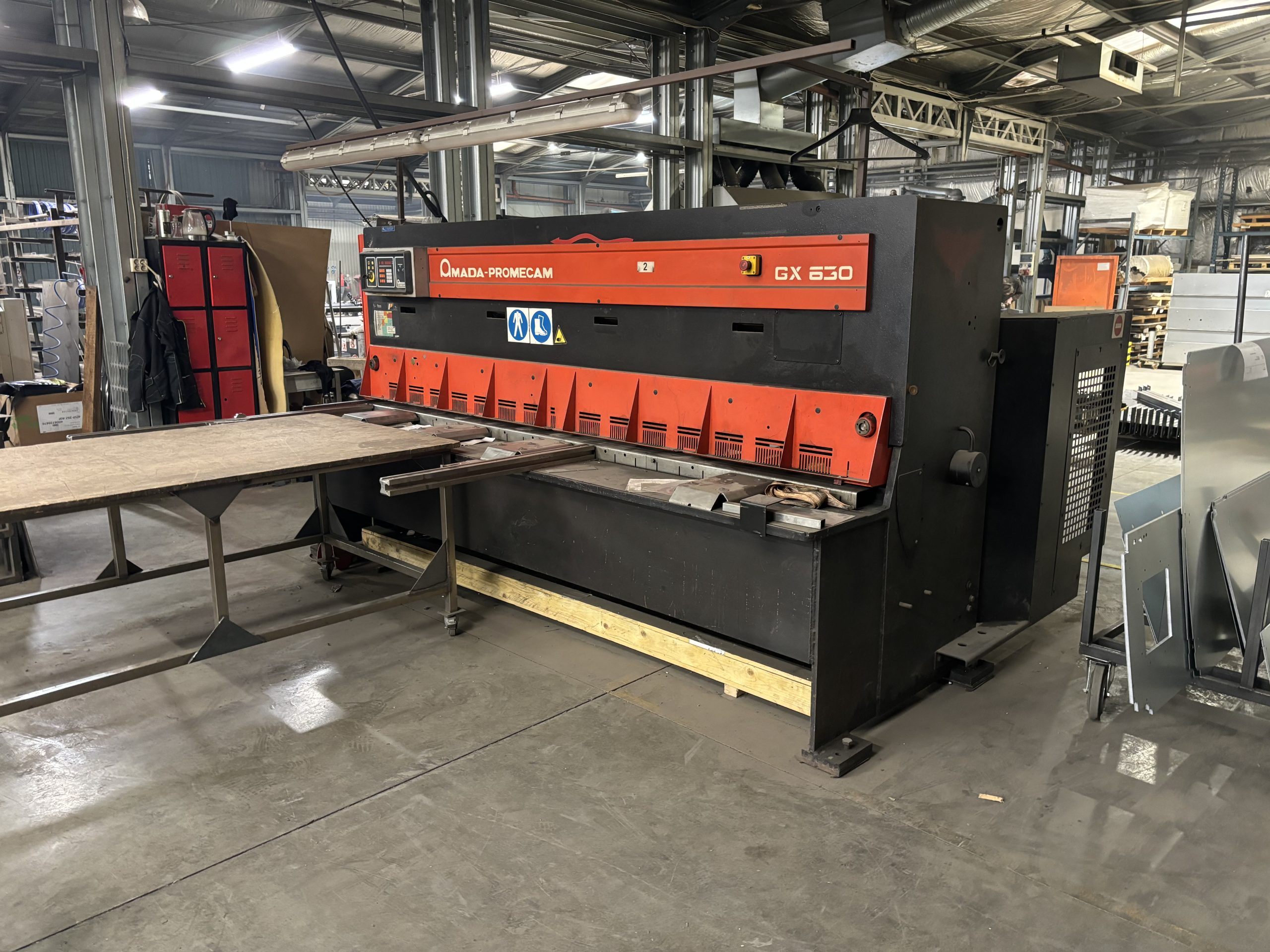

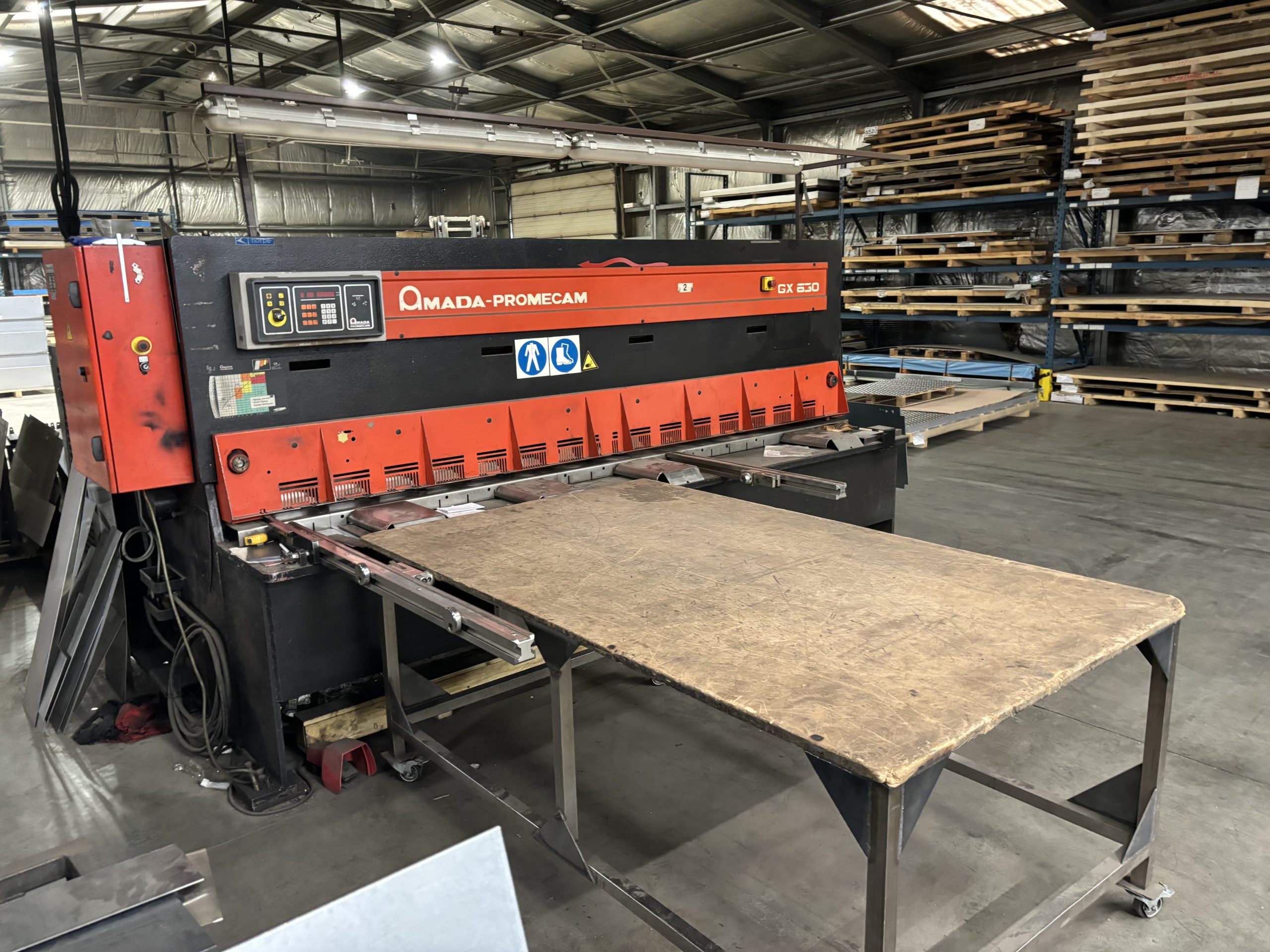

For sale is a professional AMADA PROMECAM GX 630 hydraulic guillotine shear, manufactured in 2002.

A robust industrial guillotine shear designed for precise sheet metal cutting. Maximum cutting length is 3050 mm, with a maximum mild steel thickness of 6 mm.

The machine is connected and fully operational – it can be inspected, tested and trial cuts can be performed.

New cutting blades were installed approximately two years ago. The guillotine cuts accurately and cleanly.

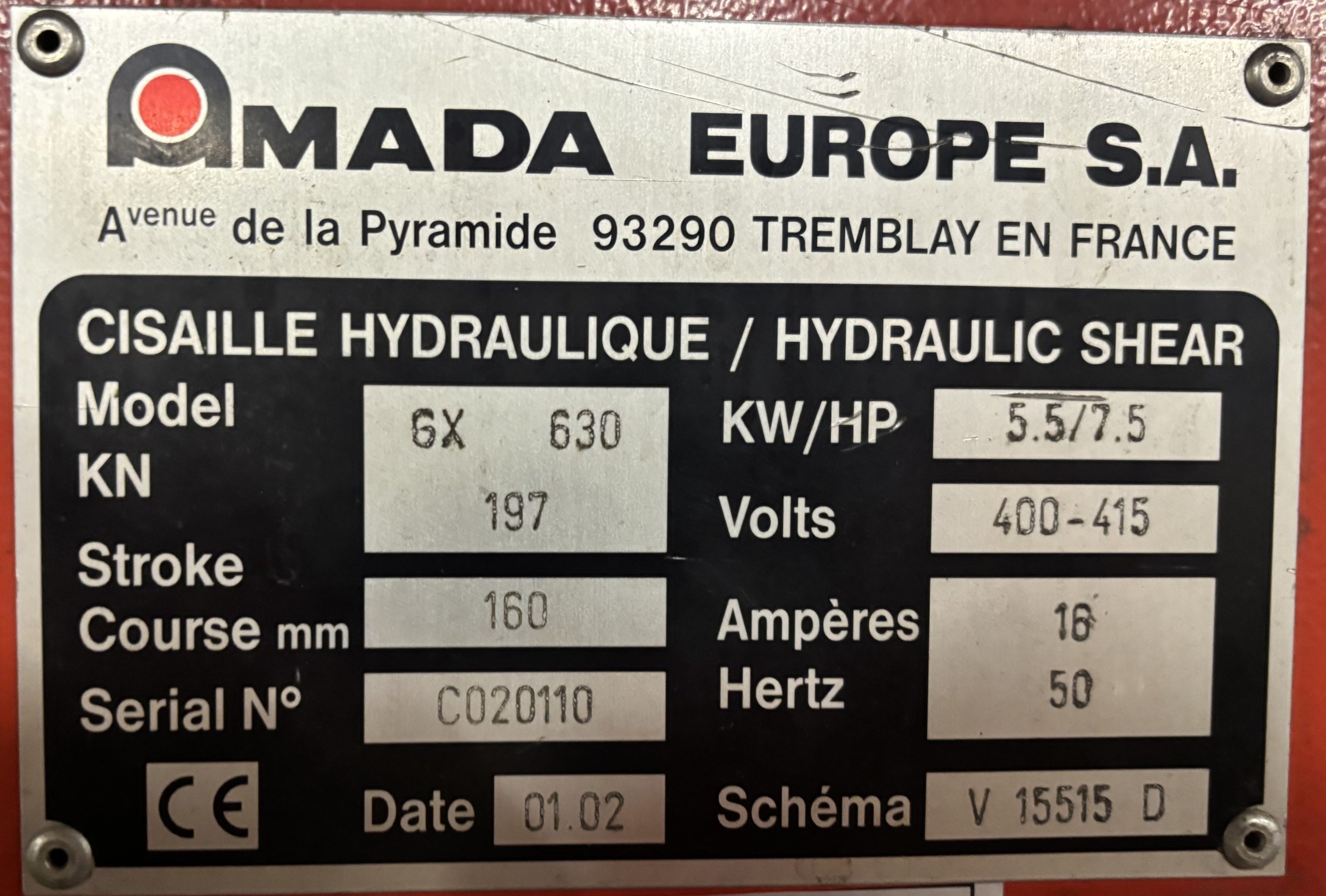

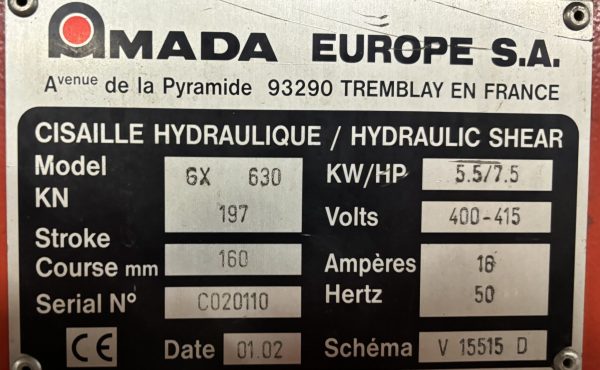

Main Information

Manufacturer: AMADA PROMECAM
Model: GX 630
Year of manufacture: 2002
Serial No.: C020110
Working length: 3050 mm
Max. mild steel thickness: 6 mm
Cutting force: 197 kN
Power: 5.5 kW / 7.5 HP
Power supply: 400–415 V / 50 Hz
Current: 16 A

NC Control and Back Gauge

The machine is equipped with an AMADA NC control, where the operator can enter the required cutting dimension and number of cuts.

The programmable back gauge up to 1000 mm automatically moves to the required position, making repetitive cutting of identical dimensions fast and convenient.

Equipment

• AMADA NC control system
• Programmable back gauge up to 1000 mm
• Hydraulic sheet clamping system
• Blade gap adjustable according to sheet thickness
• Front table extension for large sheets
• Front sheet supports
• Foot pedal control
• New cutting blades installed approximately 2 years ago

The machine is connected and fully operational – inspection and testing are possible.

If you have any questions, we will be happy to answer.
